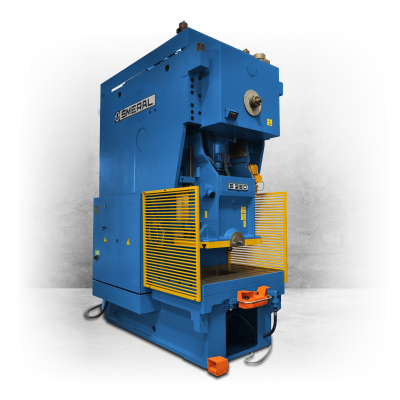

S 250

ECCENTRIC PRESSES
S 250

S 250

Eccentric presses are presses with adjustable ram stroke, with the "C" shaped frame and are designed for hot trimming of burrs of die forgings and also for punching, bending, or other operations in pressing plants, in particular when processing strips of sheet or metal coil. We offer machines with a range of nominal forming force 1.6 - 2.5 MN.

TECHNICAL PARAMETERS

S 160 S 160 E S 250 S 250 K
Forming Force kN 1600 1600 2500 2500
Shut height mm 500 500 600 695
Overhang mm 400 400 500 500
Bed Area mm 1200x800 1200x800 1400x1000 1400x1000
Ram Stroke mm 850x520 860x520 1000x650 1000x650
Ram Stroke mm 20-160 20-160 30-200 250
Number of Strokes min-1 40/60 60 50 50
Ram adjustment mm 100 100 125 125
Total installed Output kW 23 15 25 25
Machine dimensions l*w*h m 3,3*1,4*2,5 3,3*1,2*2,3 3,9*1,6*2,9 4,0*2,6*2,9
