Forming Machines > Toggle stamping presses > LLR

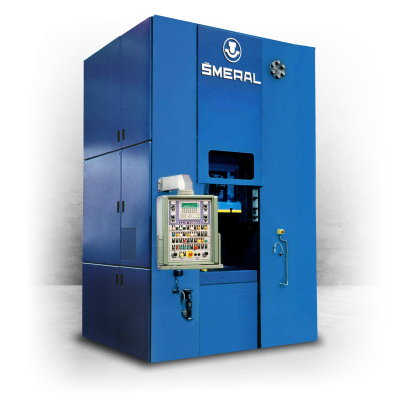

LLR 1000 A

TOGGLE STAMPING PRESSES
LLR 1000 A

LLR 1000 A
TECHNICAL PARAMETERS

Toggle stamping presses are robust, rigid and extremely precise presses with a special guidance of the ram, with hydraulic overload protection positioned in the rod or in the press frame and are designed to:

  • cold calibration operations of die forgings (achieving of accurate dimensions, which can not be assured in forging press)
  • stamping operations (badges, medals)
  • precise cold cutting operations from thick sheets.

We offer machines with a range of nominal forming force 4 - 20 MN.

TECHNICAL PARAMETERS

LLR 400
LLR 630 A/SH
LLR 1000 A
LLR 1800 A/SH
LLR 2000
LLR 400 LLR 630 A/SH LLR 1000 A LLR 1800 A/SH LLR 2000
Nominal forging power kN 4000 6300 10000 18000 20000
Shut height mm 450 1232 630 1400 700
Passage mm 500 1100 900 1160 1120
Bed area mm 500x596 1100x1000 900x1000 1140x1140 1100x1100
Ram area mm 370x400 890x650 710x950 1140x1140 850x850
Ram stroke mm 15 20 15 50 15
Ram adjusting/Number of strokes mm/min-1 90/53 250/60 140/36 250/15-40 150/32
Drive electromotor output kW 17 43,9 42 32,87 85
Machine dimensions l*w*h m 1,8*1,7*3,0 5,2*2,9*3,9 4,2*2,7*2,2 9,3*4,9*5,1 6,7*4,1*3,7
