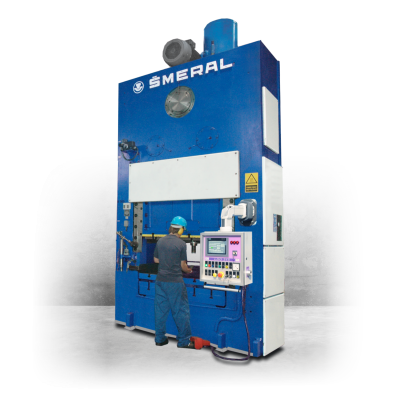

LDO 315 A/S

TRIMMING PRESSES
LDO 315 A/S

LDO 315 A/S
TECHNICAL PARAMETERS

Trimming presses are designed for both hot and cold trimming of burrs of die forgings, as well as for calibration operations and for cold processing of sheet (cutting operations, punching operation, shallow towing operations using pneumatic bottom gripper). Trimming presses find use in forge shops and in pressing plants. We offer machines with a range of nominal forming forces 2 - 8 MN.

TECHNICAL PARAMETERS

LDO 315 A/S
LDO 500 A/S
LDO 800 A/S
LDO 315 A/S LDO 500 A/S LDO 800 A/S
Nominal forging power kN 3150 5000 8000
Shut height mm 600 680 1020
Passage mm 1400 1600 1900
Bed area (width x length) mm 1380x950 1580x1100 1870x1300
Ram area (width x length) mm 1380x950 1570x1100 1860x1300
Ram stroke mm 140 160 180
Ram adjustment/Number of the strokes mm/min-1 200/44 250/38 320/32
Drive electromotor output kW 36 47 62
Machine dimensions l*w*h m 5,0*2,6*2,5 5,4*2,8*2,6 6,5*3,5*3,3
