KV 120

FORGING ROLLS
KV 120

KV 120

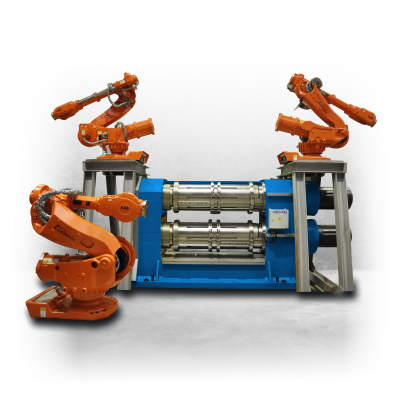

Aluminium forming machine with doubled tool and with special manipulators.
Machine can be used also for steel forming of billets of smaller diameters.

TECHNICAL PARAMETERS

KV 70 KV 120
Max. diameter of tool mm 540 840
Max. entering diameter of semi-product mm 70 120
Clamping Diameter of Tools mm 410 600
Clmping Width of Tools mm 450 2x700
Max. length of semi-product mm 400 100
Max. lenght of Rolling mm 700 1200
Number of revolutions of Rolls mm-1 65 58
Rolls adjustment mm 20 20
Machine dimensions l*w*h m 3,8*0,9*1,9 1,5*5,6*2,3
